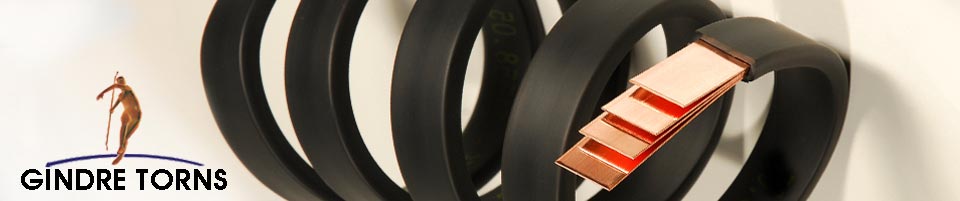

The solution when all connections are not possible with the flats.
Bars
Standard length : 2000 mm (-0/+5 mm), up to 4000 mm upon request
Strip width : from 9 up to 100 mm
Number of strips : from 2 up to 10

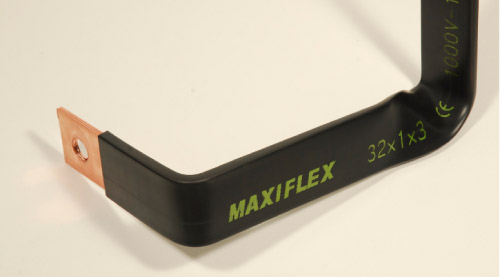

Marking : MAXIFLEX brand and size (width X thickness X number of strips)
Copper
Copper Cu-ETP with a minimum copper content of 99.90% mini
Specifications : upon NFA 51 050, EN 13599
Conductivity : › 100 IACS
HV : ‹ 50
Tensile strength : Rm › 200 N/cm2
Elongation : after break : › 35 %
Resistivity : 0,01724 Ω /mm2 at 20 °C
Insolating material
Black color insulating PVC self-extinguish
Thickness : 1,5 - 2 mm
Specifications : upon BS 6746, DIN EN 50363, UL 94 VO
Elongation : › 200%
Tensile strength : › 15 N/mm2
Electrical characteristics
Dielectric rigidity : 20 kV / mm
Tension of use : 1000 V AC
Temperature of use : -40° up to + 105°C

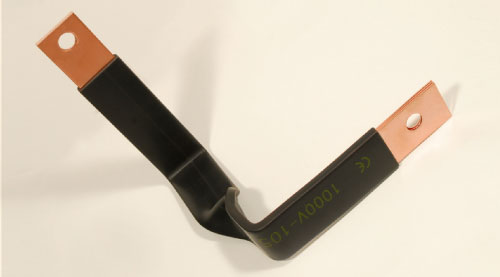

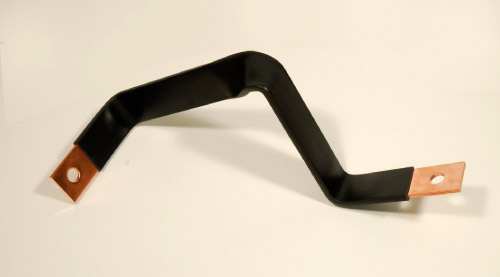

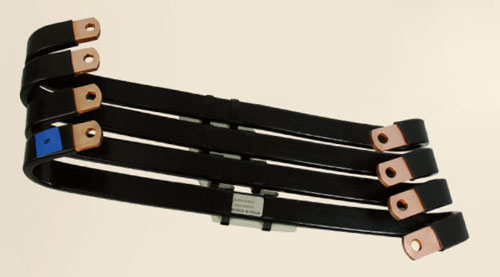

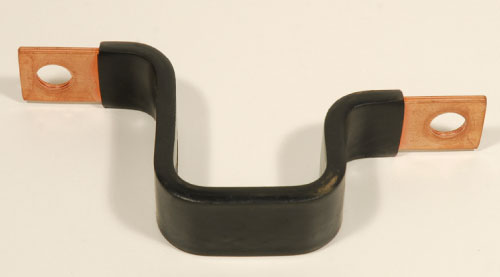

components made to specification
From your specifications our workshops throughout Europe and the world,are capable of providing all types of components based on flexible insulated copper bus bars.
NEW…
MAXIFLEX UL 758 APPROBIATED !
We would like to announce that Kupferrheydt is for the product MAXIFLEX approbiated with UL758. This certification was requested by Groupe Gindre Sales-Team and several customers. UL 758 is mandatory to sell Maxiflex in USA & Canada. With this investment we hope to increase our market share on MAXIFLEX globally. The E-file-number is E470759 and style-number 11343 on which you can see definition on all tests for 1000 Volt rating.
